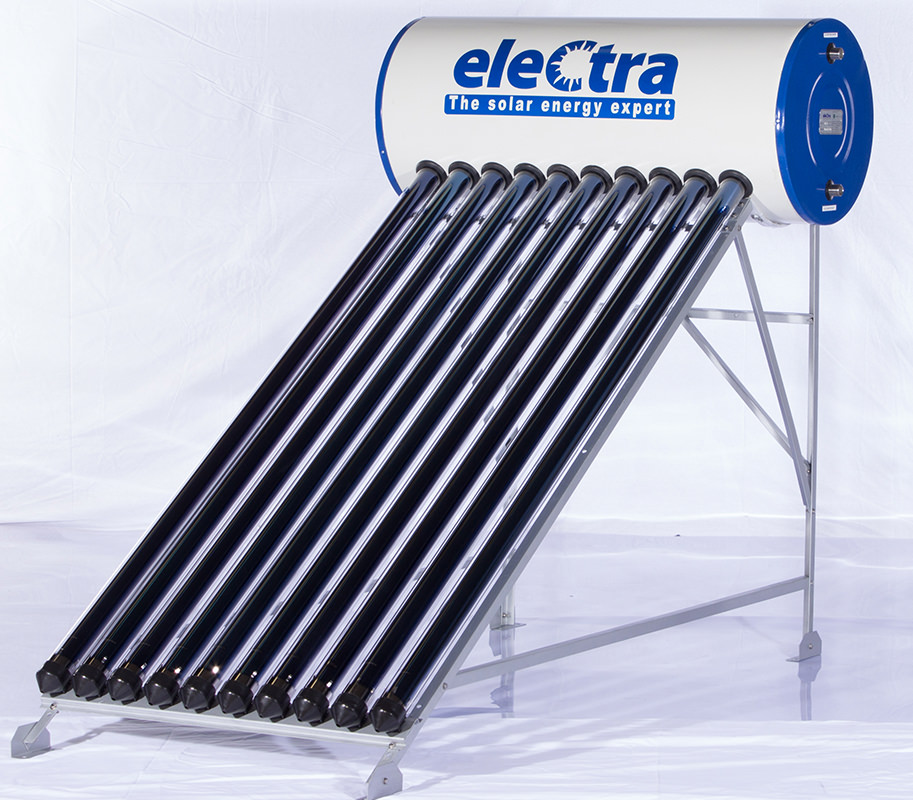

Buy Electra Solar Water Geyser modules in India

Electra Solar Water Geyser is India's largest solar cell and module manufacturer (2018-19)

TECHNICAL SPECIFICATIONS

Tank Capacity	Number Of Tubes	Tube Size	Tank MOC	Collector Area (m2)	Suitable For Number Of Persons	Installation Space Required (NS X EW)
100	10 Nos	58 mm OD X 1800 mm Length	SS 304 L, SS 316 L, GalvanisedSteel	1.5	3-4	2.5 m X 1.2 m
150	15 Nos			2.25	5-6	2.5 m X 1.7 m
200	20 Nos			3	7-8	2.5 m X 2.2 m
300	30 Nos			4.5	10-12	2.5 m X 3.4 m
500	34Nos	58 mm OD X 2100 mm Length		6.5	16-20	3.0 m X 3.4 m

Ask for prices & buy now!

Please note:

• Say good bye to electricity, gas & other fossil fuels
• Near Zero Maintenance
• Modular Design & easy to install
• High efficiency Evacuated Glass Tubes with absorptivity > 92% & emissivity < 0.065
• 3 Layer absorber target coating – (i)Cu for Infrared Reflection Layer, (ii)SS-AlN for Bonding agent cum absorption layer, (iii)AlN–Absorption cum antireflection layer
• Tube OD, Length, Thickness: 58 mm, 1800 mm, 1.6 mm
• Inner & Outer Sealing: High temperature silicon rubber, EPDM
• Structure: Hot Dip Galvanized, Powder coated
• Tank: SS, MS, GI
• Tank Insulation: PUF (38 kg/m3& 50 mm thick), Rockwool (100 kg/m3& 100 mm thick)
